The BB3 type HBM pumps are axially split case volute casing multistage pumps which are conforming to API610. These pumps are suitable for wide applications in upstream / midstream / downstream applications in petroleum, petrochemical, gas industry, fertilizer and allied chemical industry.

  • Petroleum refinery, crude oil, products and allied hydrocarbon liquid transfers.
  • Petrochemical industries – hydrocarbon liquid transfers.
  • Descaling, Sea water and de-watering.
  • Boiler feed water, upstream and midstream crude oil transfer
  • Hydraulics Power Recovery Turbine



INQUIRY NOW

Inquiry Now


[contact-form-7 404 "Not Found"]

Multi-stage, horizontal, axial splitting; centerline installation, support at both ends. The impeller is mounted back-to-back to balance the axial force, and the double volute of the pressurized water chamber is designed to balance the radial force. The first-stage double-suction impeller is designed for low cavitation conditions.

PARAMETER

HBM ISO US
Design ISO 13709 API 610
Capacity Up to 1440 m3/h Up to 6340 Gpm
Head Up to 1600 m Up to 5250 feet
Temperature Range -60 ~ +200 Dec C -140 ~ +392 Dec F
Pressure Range Up to 250 bar 3600 psi
Material Range Carbon Steel, SS, Duplex, Super Duplex, Hast alloy
Nozzle Direction ( suc / dis ) Side / Side
Motor Sync. Speed 1000 / 1500 / 3000 rpm 1200 / 1800 / 3600 rpm
Options Double suction is avaliable
Flange Standard ANSI / HG / DIN / JIS

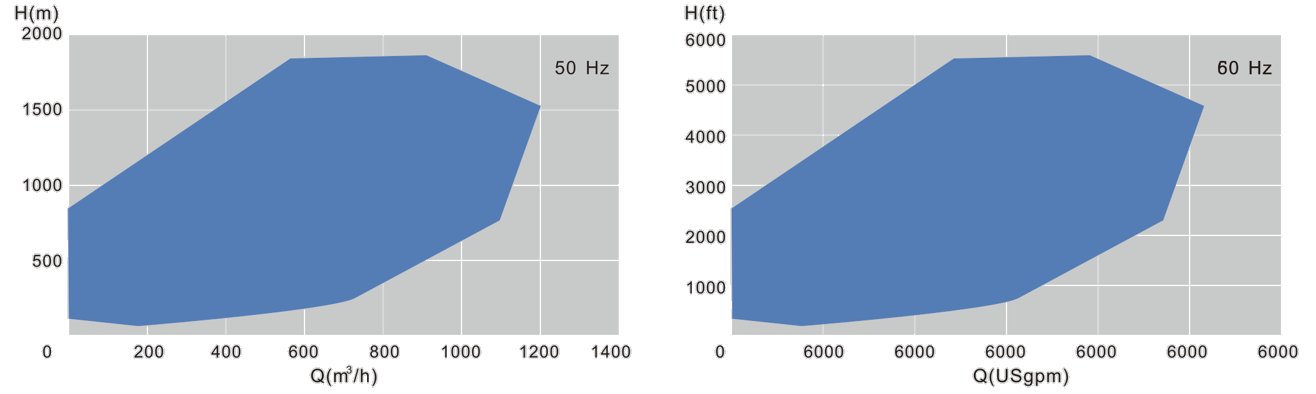

PERFORMANCE
