The VS5 type VSC is a vertically mounted suspended single casing volute cantilever pump with no shaft supports, seals, bearings or bushings below the bearing housing. All bearings are suspended in a cartridge above the cover plate to provide protection in case of flooding. The VSC has a closed impeller and can be supplied with a wide variety of competitive hydraulics.

  • Abrasive or heavy contaminated liquids in refineries petrochemical and industrial plants Clean/contaminated fluids.
  • Fibrous, textile, leather, rubber, polymer suspensions.
  • Delicate crystals such as Salt and Xylene.
  • Hydrocarbons



INQUIRY NOW

Inquiry Now


[contact-form-7 404 "Not Found"]

No intermediate bearings inside the liquids are allowed. Performance of the pump can be customized to customer requirements by means of a closed, open and semi-open impeller, where leakages are forbidden for environmental and health protection reasons

PARAMETER

VSC ISO US
Design ISO 13709 API 610
Capacity Up to 400 m3/h Up to 1760 Gpm
Head Up to 60 m Up to 190 feet
Temperature Range -20 ~ +200 Dec C -68 ~ +390 Dec F
Pressure Range Up to 25 bar 363 psi
Material Range Carbon Steel, SS, Duplex, Super Duplex, Hast alloy
Nozzle Direction ( suc / dis ) Bottom / Through discharge pipe
Motor Sync. Speed 1000 / 1500 / 3000 rpm 1200 / 1800 / 3600 rpm
Options Jacake type is avaliable
Flange Standard ANSI / HG / DIN / JIS

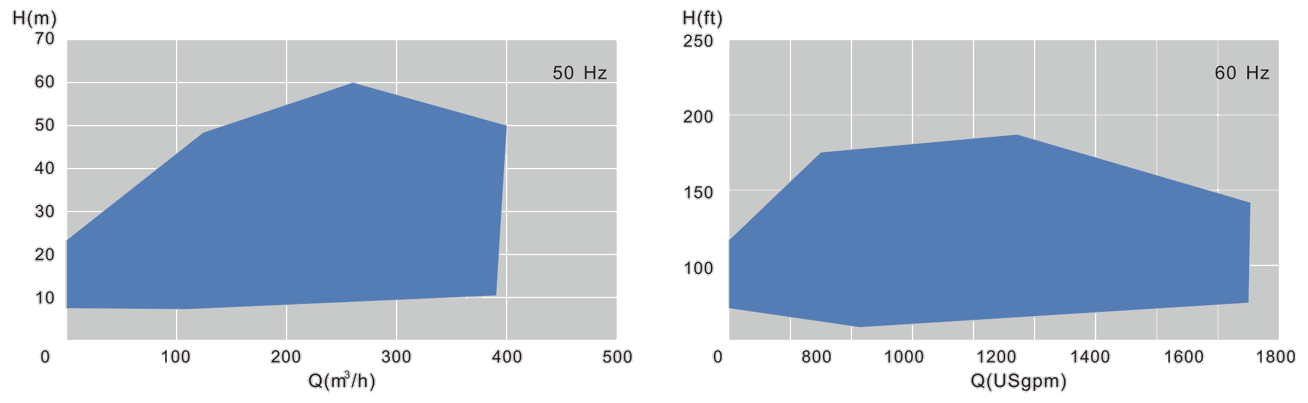

PERFORMANCE
